AWP Lithium Battery

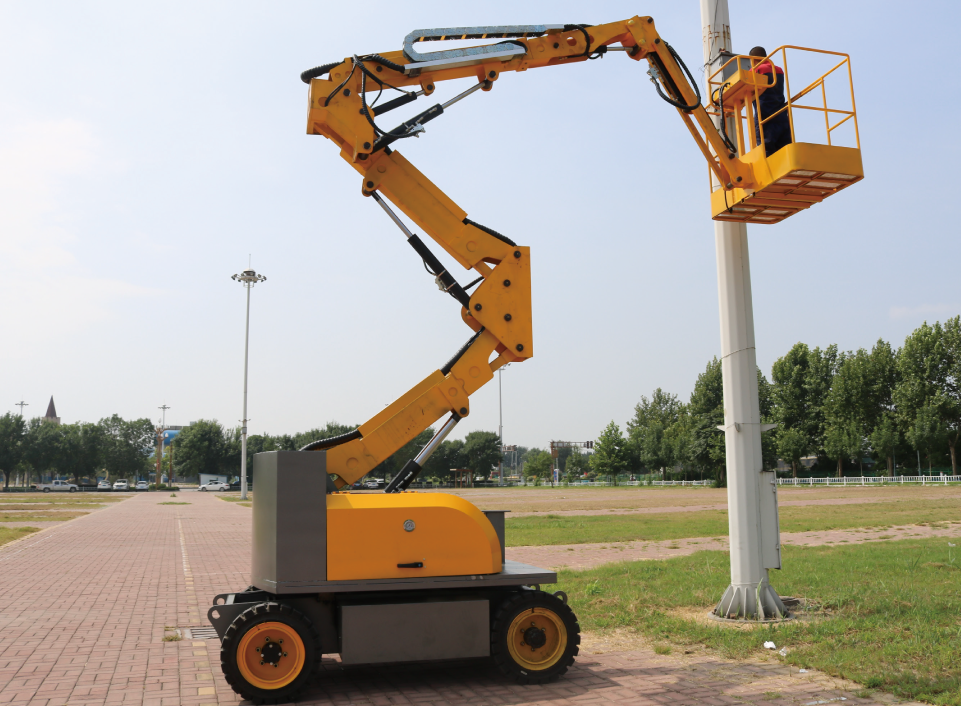

Aerial Work Platform Lithium Battery

Contact Us
Features Application Specification

Features

High energy density for longer runtime and consistent power.

Fast charging capability to maximize equipment uptime.

Maintenance-free sealed LiFePO₄ chemistry with no watering or ventilation needed.

Long cycle life exceeding 3,500 charge-discharge cycles.

Wide operating temperature range from −20 °C to 55 °C.

Built-in smart Battery Management System (BMS) for cell balancing, over-voltage, under-voltage, and temperature protection.

IP65/IP67 rated for dust and water resistance.

Stable voltage output under heavy load conditions.

Compatible with common AWP voltage systems (24V, 48V, 72V).

Reduces total operating and maintenance costs by up to 70% compared to lead-acid batteries.

Application

Specification

Model Capacity Voltage Weight W D H Max CH Max DCH Peak DCH Life Downloads
Ah V Kg mm mm mm A A A Cycles

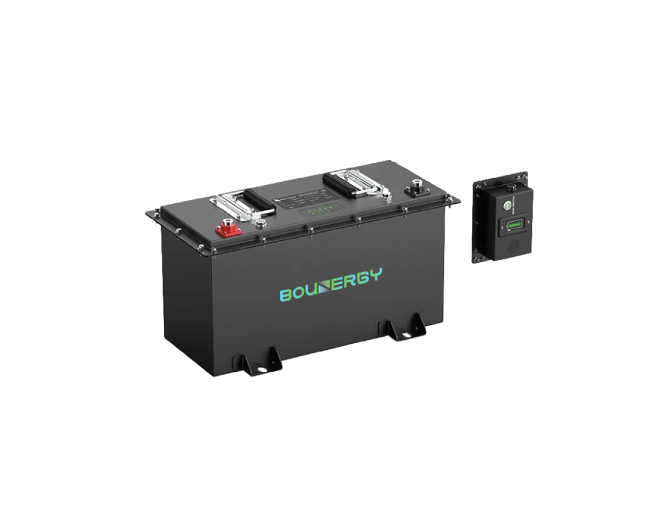

AW24150 150 25.6 35 508 350 191 120 180 200@1s 3500 Download

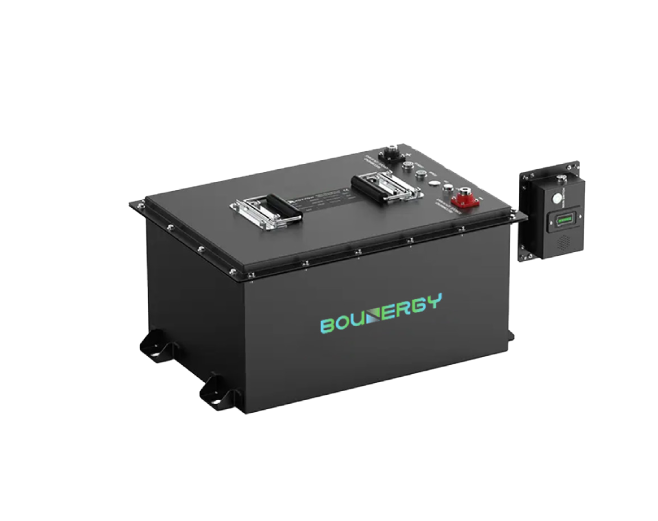

AW48100 100 51.2 46 524 360 261 100 250 300@1s 3500 Download

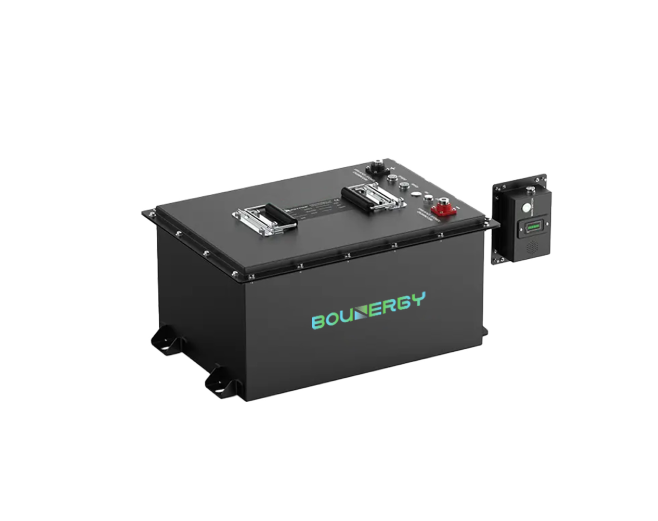

AW24100 100 25.6 24 448 244 261 120 180 200@1s 3500 Download
