Residential ESS Solution

Rack Mount Series

Contact Us
Features Application Specification

Features

Maximum charge/discharge up to 1C.

Friendly human-machine interface.

Suitable for standard 19-inch cabinet with rack-mounted design.

Adopt lithium iron phosphate batteries with safe and long life cycle.

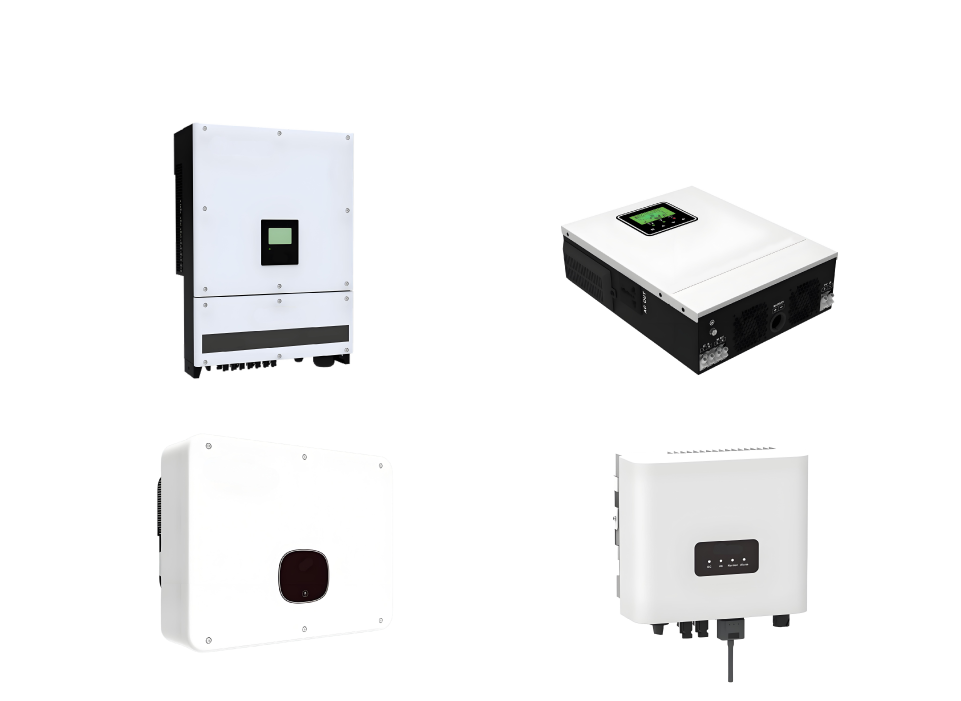

Compatible with multiple brands of inverters at the same time.

Application

Application

​Solar Energy Storage​: Stores excess solar power generated during the day for use at night or during low-production periods, reducing grid reliance and electricity costs.

​Peak/Off-Peak Tariff Optimization​: Charges during low-tariff periods (e.g., nighttime) and discharges during high-tariff peaks, cutting electricity expenses by 20–30%.

​Backup Power During Grid Outages​: Provides emergency power for critical loads (e.g., refrigerators, medical devices) during grid failures, ensuring 4–6 hours of continuous operation.

​Off-Grid Power Supply​: Supports energy autonomy in remote areas without grid access, often integrated with solar/wind systems for 24/7 power.

​Electric Vehicle (EV) Charging Support​: Synergizes with rooftop solar to prioritize green energy for EV charging, lowering transportation energy costs.

​Virtual Power Plant (VPP) Participation​: Aggregates distributed household storage to provide grid-balancing services (e.g., frequency regulation) and generate user revenue.

​Portable Power for Mobile Needs​: Powers outdoor activities (e.g., camping, fieldwork) or temporary setups via lightweight, high-capacity mobile units.

Application

Specification

Model Capacity Voltage Weight W D H Max CH Max DCH Peak DCH Life Downloads
Ah V Kg mm mm mm A A A Cycles

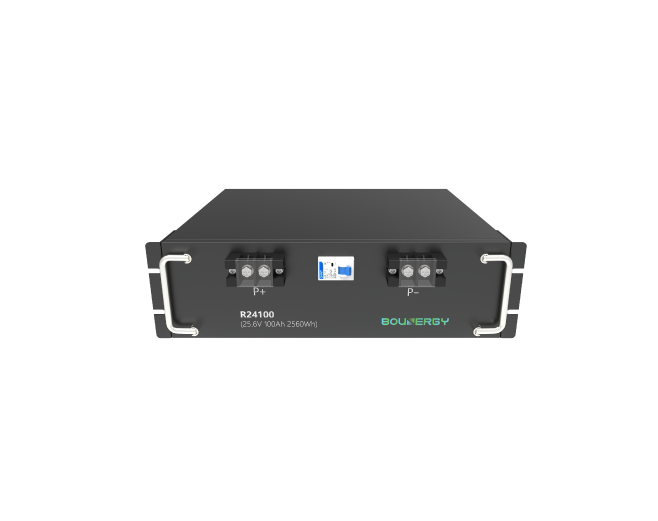

R24100 100 25.6 24 442 400 133 150 150 180A@500ms 6000 Download

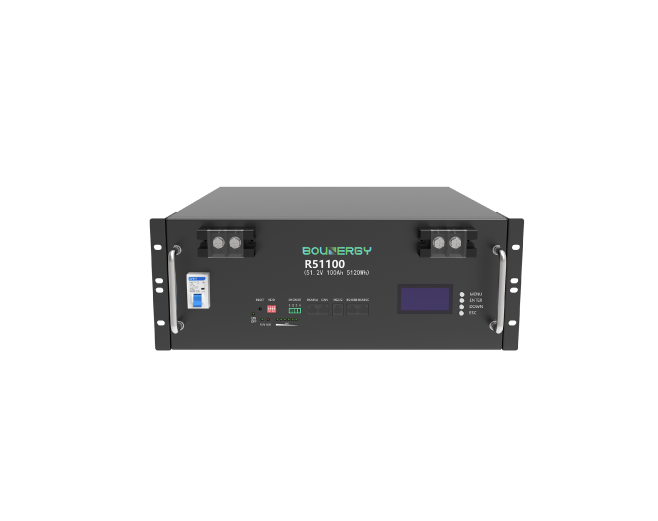

R51100 100 51.2 44 442 450 177 150 150 180A@500ms 6000 Download
