Residential ESS Solution

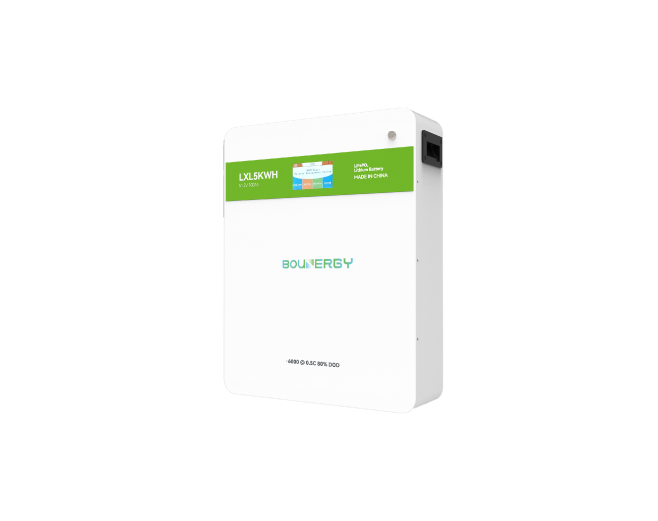

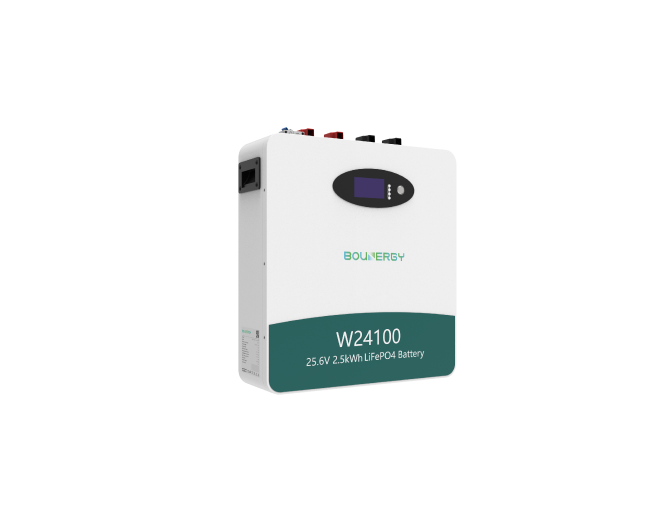

Wall Mount Series

Contact Us
Features Application Specification

Features

Suitable for Arabic language.

Adopt lithium iron phosphate batteries with safe and long life cycle.

Maximum charge/discharge up to 1C.

Friendly human-machine interface.

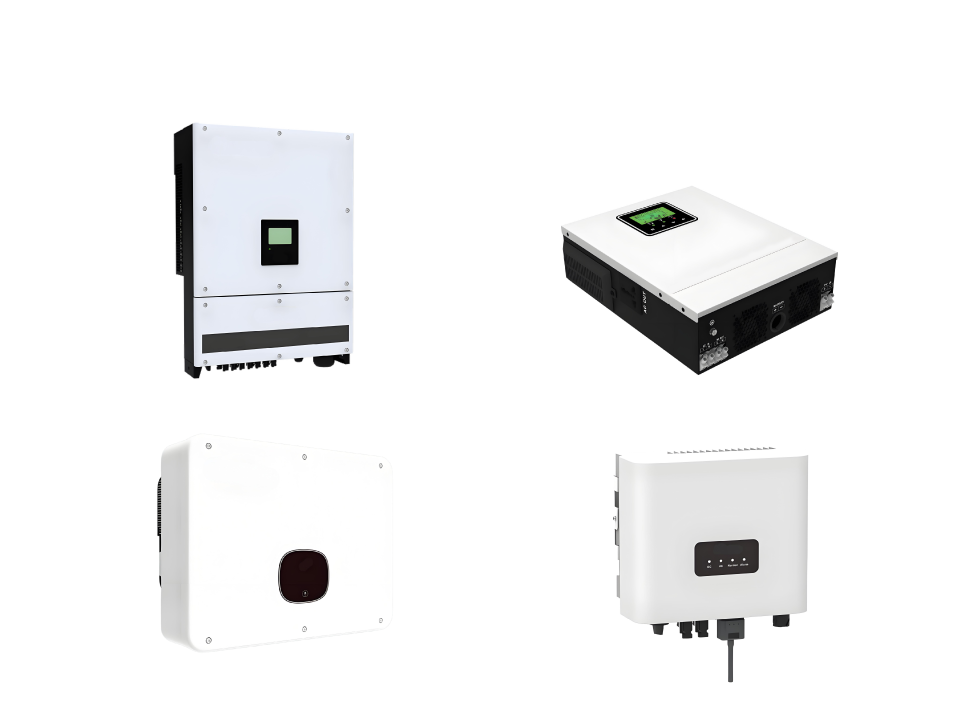

Compatible with multiple brands of inverters at the same time.

Application

Application

​Solar Energy Storage​: Stores excess solar power generated during the day for use at night or during low-production periods, reducing grid reliance and electricity costs.

​Peak/Off-Peak Tariff Optimization​: Charges during low-tariff periods (e.g., nighttime) and discharges during high-tariff peaks, cutting electricity expenses by 20–30%.

​Backup Power During Grid Outages​: Provides emergency power for critical loads (e.g., refrigerators, medical devices) during grid failures, ensuring 4–6 hours of continuous operation.

​Off-Grid Power Supply​: Supports energy autonomy in remote areas without grid access, often integrated with solar/wind systems for 24/7 power.

​Electric Vehicle (EV) Charging Support​: Synergizes with rooftop solar to prioritize green energy for EV charging, lowering transportation energy costs.

​Virtual Power Plant (VPP) Participation​: Aggregates distributed household storage to provide grid-balancing services (e.g., frequency regulation) and generate user revenue.

​Portable Power for Mobile Needs​: Powers outdoor activities (e.g., camping, fieldwork) or temporary setups via lightweight, high-capacity mobile units.

Application

Specification

Model Capacity Voltage Weight W D H Max CH Max DCH Peak DCH Life Downloads
Ah V Kg mm mm mm A A A Cycles

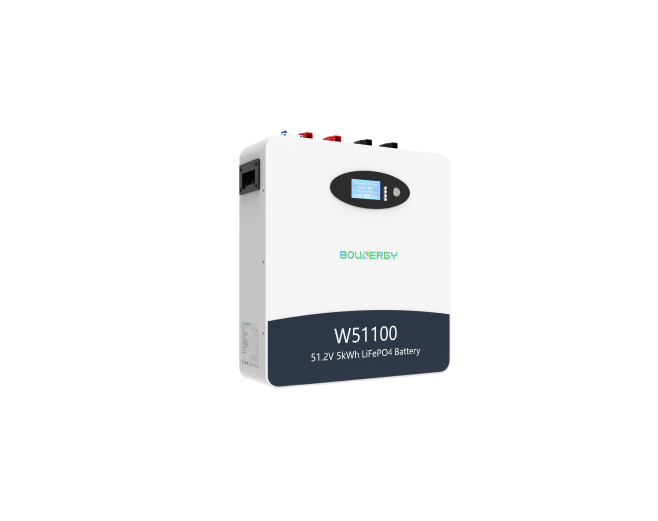

W51100 100 51.2 43 460 140 500 150 150 180A@500ms 6000 Download

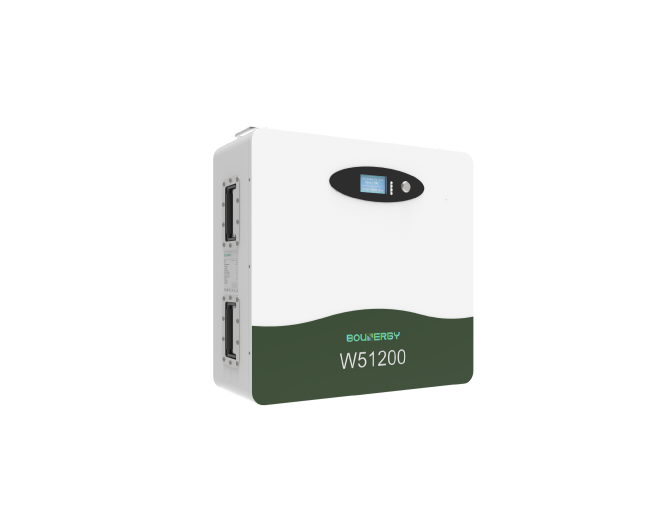

W51200 200 51.2 105 600 241 580 200 200 250A@500ms 6000 Download
W51200M 200 51.2 105 600 241 580 100 100 125A@500ms 6000 Download
W51160V 160 51.2 60 500 162 685 120 120 150A@500ms 6000 Download

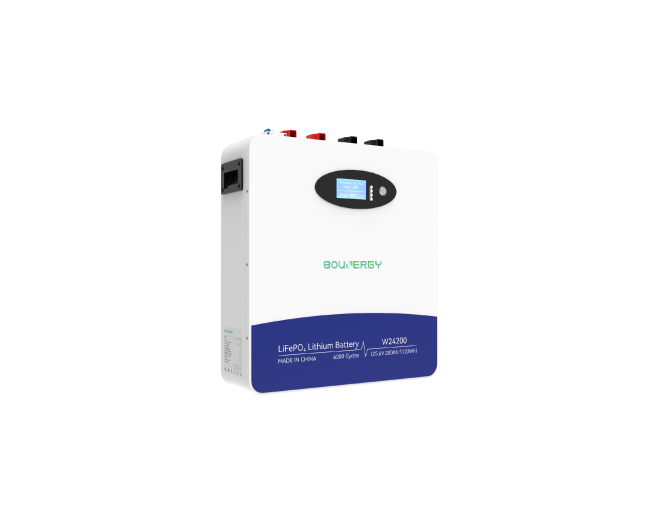

W24200 200 25.6 43 460 140 500 150 150 180A@500ms 6000 Download
W24200M 200 25.6 43 460 140 500 100 100 150A@500ms 6000 Download
