Residential ESS Solution

Floor Stand Series

Contact Us
Features Application Specification

Features

Floor standing design, easy to install, beautiful.

Adopt lithium iron phosphate batteries with safe and long life cycle.

Maximum charge/discharge up to 1C.

Friendly human-machine interface.

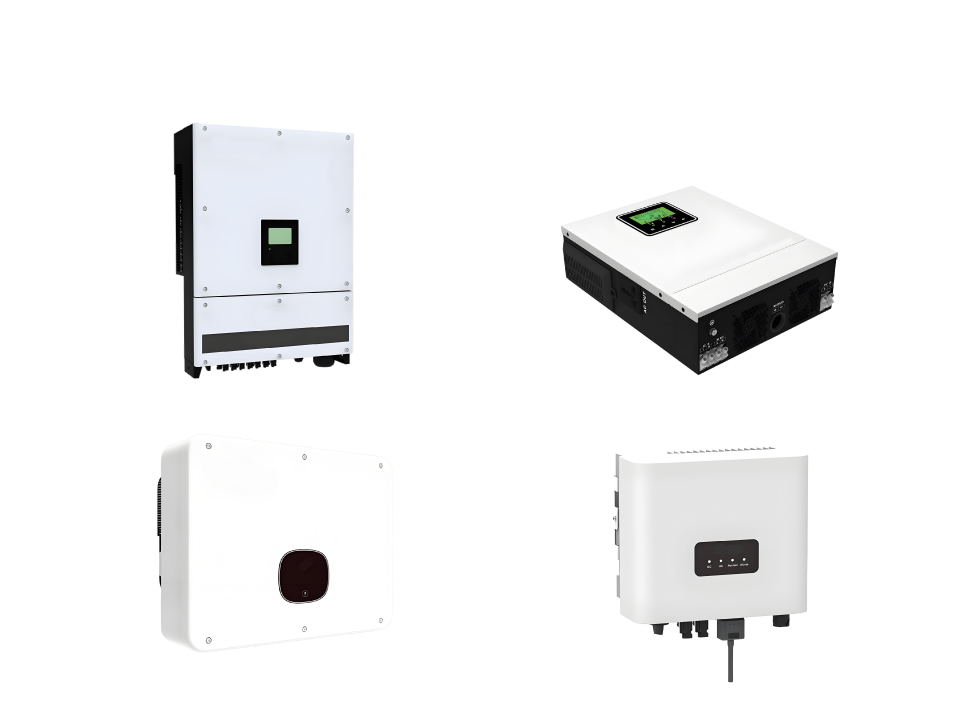

Compatible with multiple brands of inverters at the same time.

Application

Application

​Solar Energy Storage​: Stores excess solar power generated during the day for use at night or during low-production periods, reducing grid reliance and electricity costs.

​Peak/Off-Peak Tariff Optimization​: Charges during low-tariff periods (e.g., nighttime) and discharges during high-tariff peaks, cutting electricity expenses by 20–30%.

​Backup Power During Grid Outages​: Provides emergency power for critical loads (e.g., refrigerators, medical devices) during grid failures, ensuring 4–6 hours of continuous operation.

​Off-Grid Power Supply​: Supports energy autonomy in remote areas without grid access, often integrated with solar/wind systems for 24/7 power.

​Electric Vehicle (EV) Charging Support​: Synergizes with rooftop solar to prioritize green energy for EV charging, lowering transportation energy costs.

​Virtual Power Plant (VPP) Participation​: Aggregates distributed household storage to provide grid-balancing services (e.g., frequency regulation) and generate user revenue.

​Portable Power for Mobile Needs​: Powers outdoor activities (e.g., camping, fieldwork) or temporary setups via lightweight, high-capacity mobile units.

Application

Specification

Model Capacity Voltage Weight W D H Max CH Max DCH Peak DCH Life Downloads
Ah V Kg mm mm mm A A A Cycles
F15KWH 280 51.2 130 530 168 981 200 200 250@500ms 6000 Download
F51314 314 51.2 130 530 168 981 200 200 300@500ms 6000 Download
F15KWH 314 51.2 130 530 168 981 200 200 300@500ms 6000 Download
F51314M 314 51.2 130 530 168 981 100 100 150@500ms 6000 Download
