Features
Maintenance free, long cycle life and high reliability.
Light weight, high energy density, green and environmental friendly.
Built-in intelligent BMS to protect the battery in real time to extend the service life.
Provide high efficiency, energy saving, stable power supply, and high power output.
With wide working temperature range and excellent performance in high and low temperature.
Application
Power backup for 5G micro base stations.

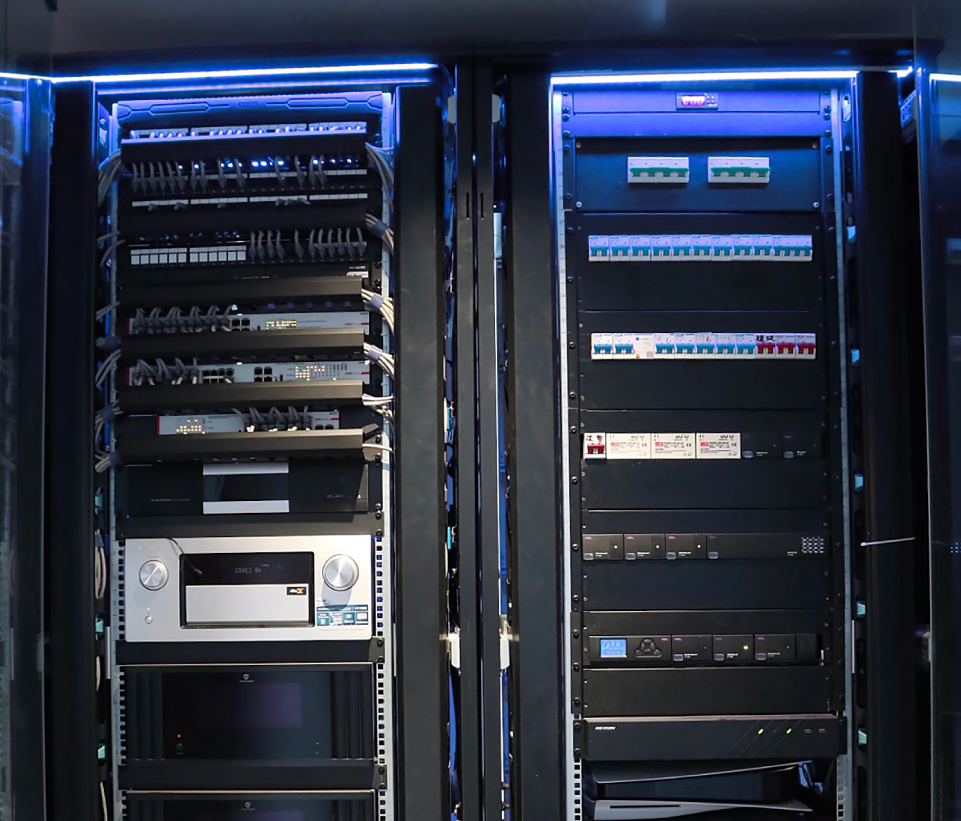

Telecom tower and outdoor cabinet systems.
Off-grid and hybrid power solutions.
Smart grid and mobile communications.

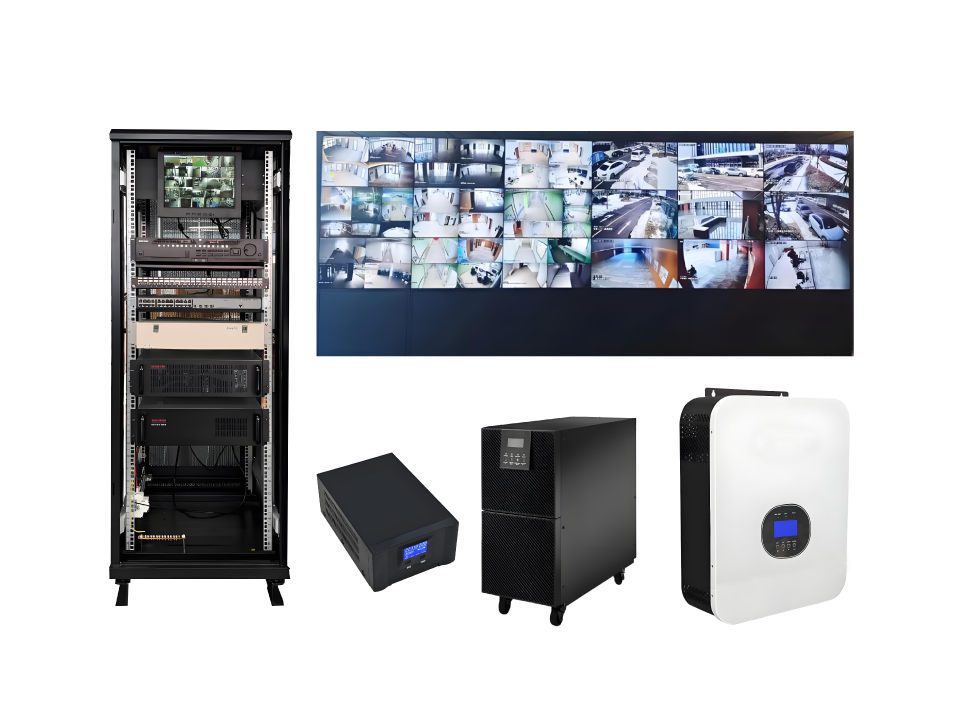

CCTV power backup.
Specification
| Model | Capacity | Voltage | Weight | W | D | H | Max CH | Max DCH | Peak DCH | Life | Downloads |
| Ah | V | Kg | mm | mm | mm | A | A | A | Cycles | ||

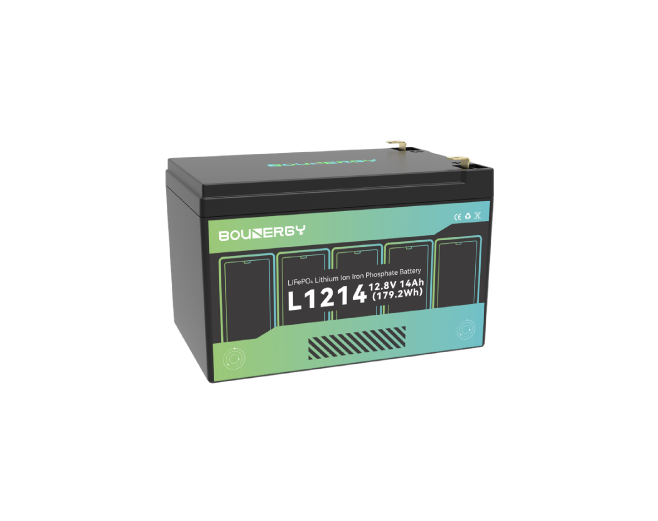

| L1214 | 14 | 12.8 | 1.4 | 151 | 99 | 99 | 14 | 14 | 20 | 6000 | Download |

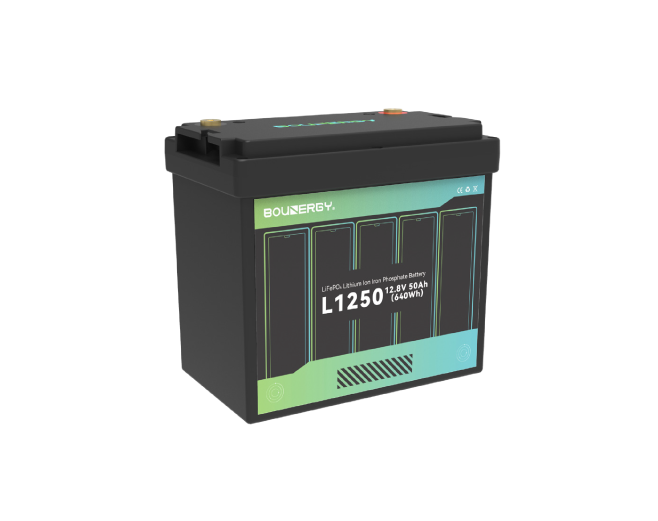

| L1250 | 50 | 12.8 | 5.6 | 229 | 144 | 208 | 50 | 50 | 60 | 6000 | Download |

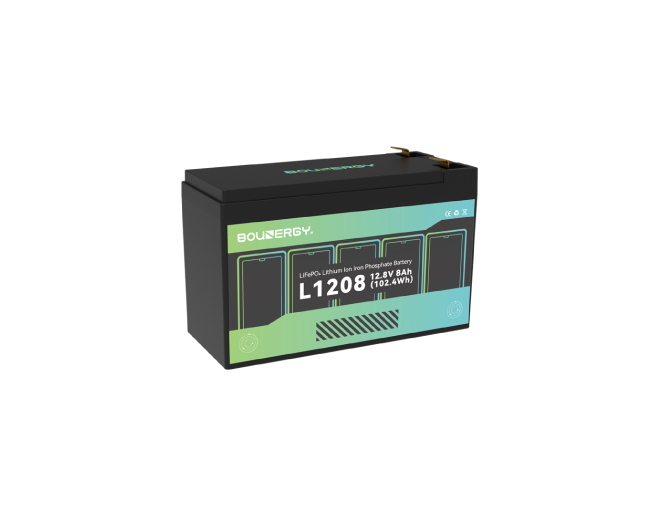

| L1208 | 8 | 12.8 | 1.0 | 151 | 65 | 94 | 8 | 10 | 15 | 6000 | Download |

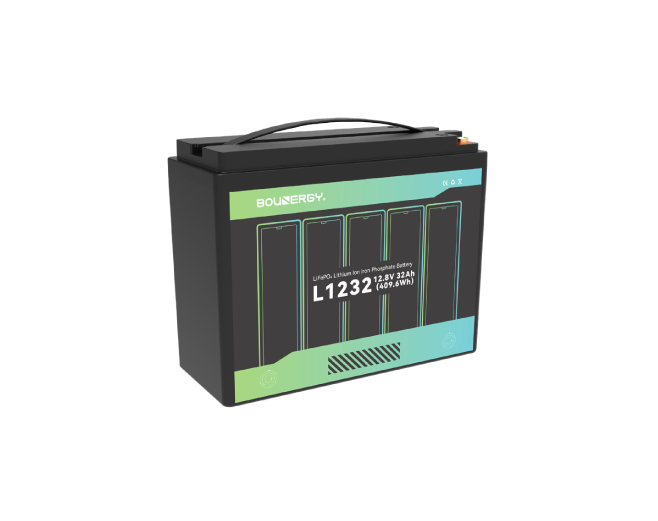

| L1232 | 32 | 12.8 | 3.5 | 223 | 95 | 175 | 32 | 32 | 40 | 6000 | Download |

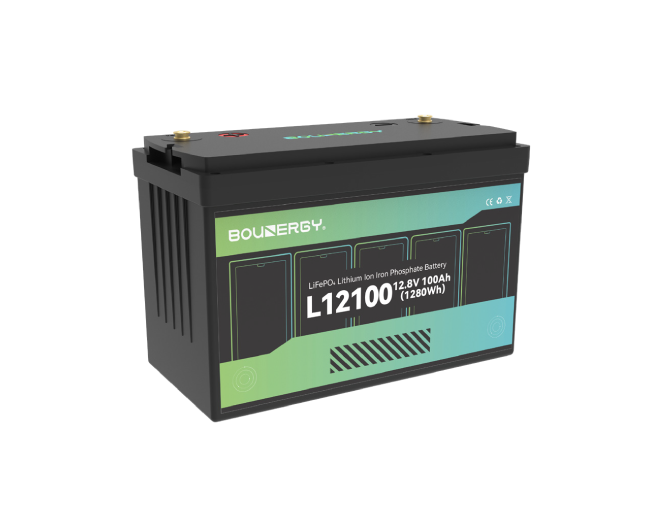

| L12100 | 100 | 12.8 | 12.0 | 330 | 172 | 220 | 100 | 150 | 180 | 6000 | Download |

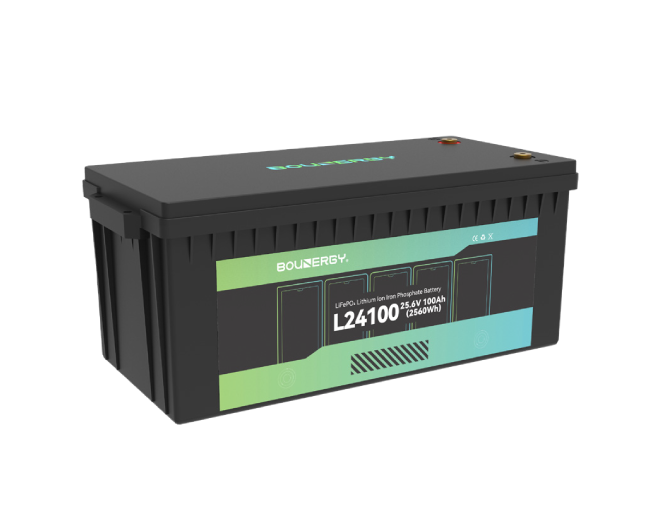

| L24100 | 100 | 25.6 | 23.0 | 522 | 242 | 219 | 100 | 150 | 180 | 6000 | Download |
| L12100M | 100 | 12.8 | 12.0 | 330 | 172 | 220 | 100 | 100 | 125 | 6000 | Download |

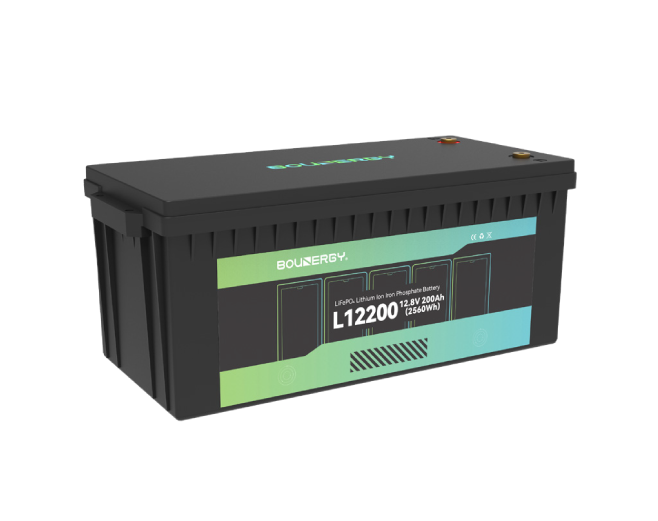

| L12200M | 200 | 12.8 | 23.0 | 522 | 242 | 219 | 100 | 100 | 125 | 6000 | Download |
| L24100M | 100 | 25.6 | 23.0 | 522 | 242 | 219 | 100 | 150 | 180 | 6000 | Download |
